Wiring Diagram for ARR Ruby & Variants

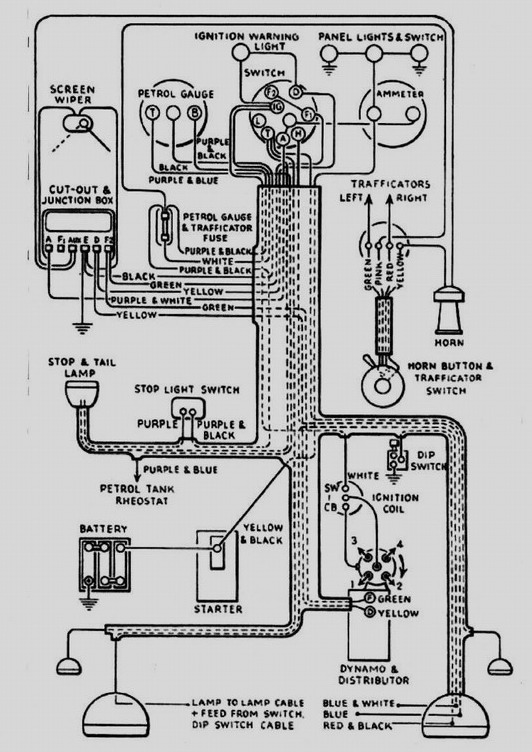

Austin Ruby Wiring Diagram

Positive pole earthed.



From Handbook of the Austin Seven Publication No 1400D, August 1937.
The Austin Motor Co Ltd., Birmingham, Longbridge.
